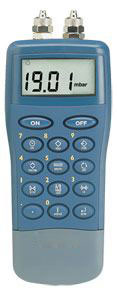

Digital Hand Held Manometer

Hand Held Digital Pressure Manometer for Pressure and Differential Pressure Measurements.

Measuring element: piezoresistif sensor

Overpressure allowed: 250mba, 700mbar,   1.4bar,  3 bar  : 250 mbar

Pressure connectors: Ø 6.2 mm barbed connectors made of nickelled brass 5  : Ø 4.6 mm threaded connectors made

of nickelled brass

Display: 2 lines, LCD technology. Sizes 50 x 34.9 mm. 1 line of 5 digits with 7 segments (value).  1 line of 5 digits with

16 segments (unit)

Housing: Shock-proof made of ABS, IP54 protection

Keypad: Metal-coated with 5 keys

Conformity: electromagnetical compatibility (NF EN 61326-1 guideline)

Power supply: 1 alcaline battery 9V 6LR61

Operating temperature: from 0 to 50°C

Storage temperature: from -20 to +80°C

Auto shut-off: adjustable from 0 to 120 min

Weight: 190g
