Vishay Controller Load Cells

Application: DIN-rail mounted analog transmitter designed to interface load cells directly to PLCs, DCS, and industrial acquisition systems.

Key Specifications:

• Model Number: WT2
• Excitation / Input: 5 VDC
• Accuracy: 0.01% full scale precision
• Power Consumption: 2 Watt low power design
• Serial Communication: RS485 half-duplex
• Dimensions: 119 x 112 x 23 mm (L x H x D), standard DIN-rail mounting
• Housing Material: High impact flame-retardant ABS

Application: Ultra-fast dynamic weighing, checkweighers, packaging sorters, and high-frequency force measurement.

Key Specifications:

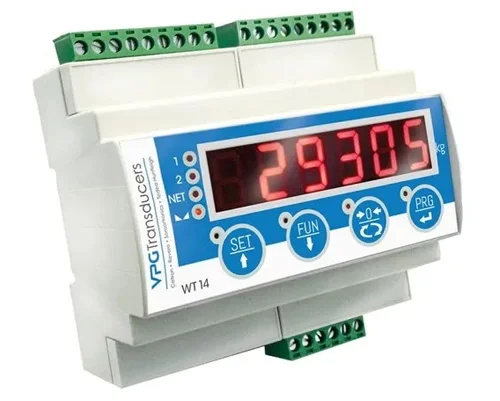

• Model Name: WT14
• Sampling Frequency: 1000 Hz ultra-high speed processing
• Accuracy: 0.1% dynamic calibration rating
• Display: High-contrast Digital LED display
• Operating Voltage: 12 VDC / Wattage: 5 Watt
• Mounting: DIN Rail / Panel mounting compatible
• Data Storage: 64 KB non-volatile parameter memory

Application: General industrial process automation, batching silos, hopper tanks, and mixing vessels.

Key Specifications:

• Model Name: WT1
• Power Supply: 24 VDC (±10%)
• Display: 6-digit bright red LED display
• Operating Modes: Gross, Net, Tare, Peak Hold, Zero tracking
• Interface: Opto-isolated digital inputs and setpoint relay outputs
• Warranty: 1-Year Comprehensive Manufacturer Warranty

Application: Cleanroom weighing, pharmaceutical processing, and compact OEM cabinet weight transmission.

Key Specifications:

• Model Name: WT15 Revere Transducer VPG
• Power Input: 24 VDC regulated supply
• Output: Standard 4-20mA / 0-10V analog plus RS485 Modbus RTU
• Display: Embedded digital display for field calibration
• Enclosure: White chemical-resistant ABS housing
• Direct connection to up to 8 load cells (350 Ω each) in parallel

Application: Heavy industrial weighbridges, truck scales, platform scales, and critical tank level weighing requiring continuous calibration verification.

Key Specifications:

• Brand: VPG Transducer Industrial Series
• Calibration: Fully Automatic digital calibration without test weights
• High A/D conversion resolution with multi-stage digital filtering
• Multi-drop network connectivity for plant-wide SCADA integration
• Heavy-duty IP65 front panel with tactile sealed keys
