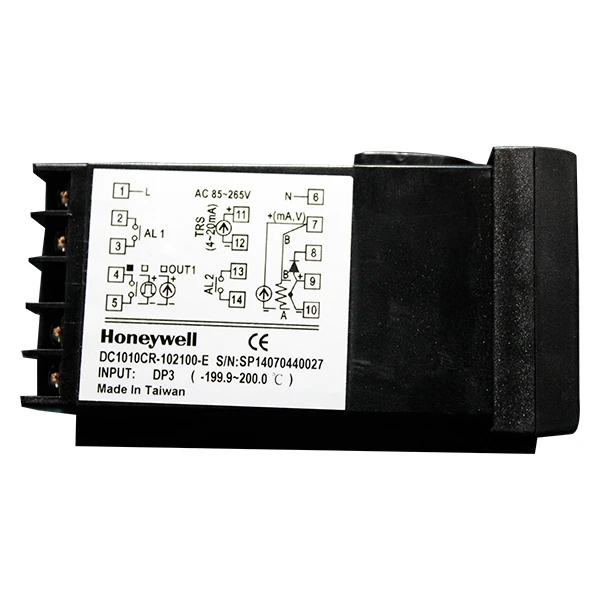

Application: High-performance digital PID controller engineered for
precise temperature regulation in dryers, semiconductor test benches, plastics, and ovens.
Key Features:
- DC1000 microprocessor family delivering high reliability and advanced
functionality at economical cost
- Available in 4 standard DIN formats: 1/16 DIN (48x48mm), 1/8 DIN (48x96mm), 3/16
DIN, and 1/4 DIN (96x96mm)
- Universal input: Accepts Thermocouples (J, K, R, S, T, E), RTD Pt100, and 4-20mA
/ 0-10V analog signals
- Intelligent auto-tuning PID algorithm calculates optimal P, I, D parameters
automatically
- Control outputs: Relay contact, 12VDC SSR pulse drive, or 4-20mA proportional
modulating
- Dual 4-digit bright LED displays showing Process Variable and Setpoint
simultaneously
