Pressure Transmitters

Application: General industrial machinery, hydraulic systems, compressor monitoring, water treatment, and process automation.

Key Features:

• Pressure ranges from 0-15 PSI up to 0-250 PSI (and extended ranges up to 600 bar)
• High accuracy: ±0.25% Full Scale (FS) calibrated output
• 316L stainless steel wetted parts for superior corrosion resistance
• Standard 4-20mA 2-wire or 0-10VDC analog output
• DIN 43650A Hirschmann electrical connector with IP65 protection
• High shock and vibration resistance

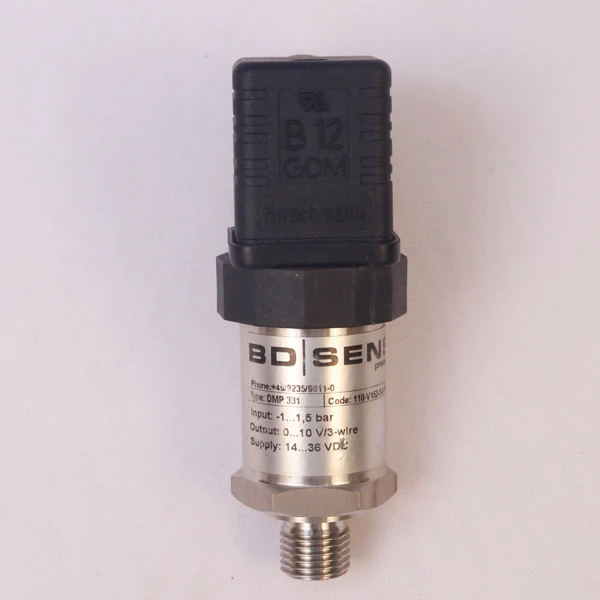

Application: Low-cost, compact design optimized for high-volume OEM installations in HVAC, refrigeration, emissions, and automotive test benches.

Key Features:

• Economical pricing tailored for machine builders and large equipment manufacturers
• Small package size fits into tight instrument enclosures and manifolds
• Absolute, gauge, and compound pressure ranges
• Excellent thermal stability with active digital temperature compensation
• Broad media compatibility: refrigerants, air, hydraulic oils, and neutral gases

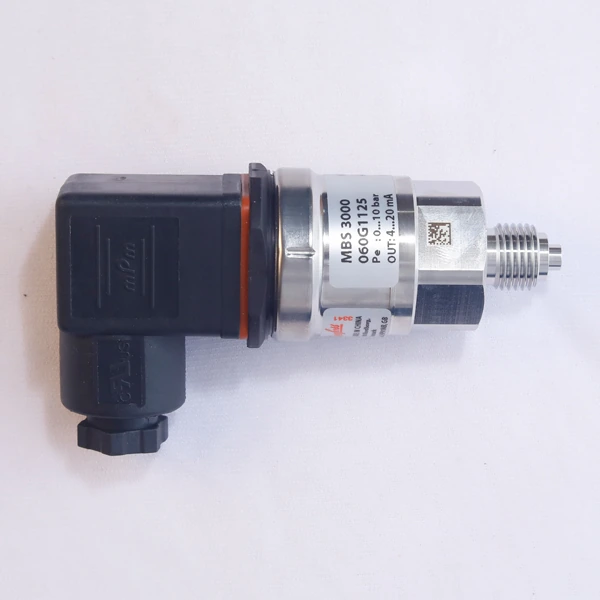

Application: Oil & gas, harsh chemical processing, medical equipment, transformer grid monitoring, and corrosive industrial fluids.

Key Features:

• Fully welded 316L SS isolation diaphragm prevents internal seal degradation
• High overpressure limit and burst pressure rating for surge protection
• Compound pressure monitoring (vacuum through positive pressure)
• Explosion-proof and intrinsically safe compatible design
• M12 4-pin or integral shielded cable termination
